ENVIRO GRIDTM

  • Enviro gridTM with honeycomb three dimensional structure.
  • Enviro gridTM with a soil confinement system a horizontal direction of material surface.
  • Synthetic materials which can be used for erosion control of scopes,embankment,wateredge to increase bearing capacity of the soil underneath.



ENVIRO GRIDTM – THE DESIGN

Cells of Enviro GridTM material will reduce the flow of surface water.

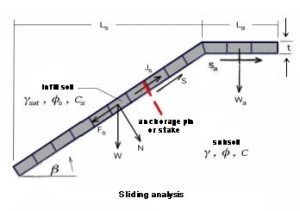

  • The analysis of the overall stability of the slope – whether it is an erosion or other complications. Analysis of flow resistance on a cope surface.
  • The design of the anchor ,increase the adhesion of the soil to the material surface in case the friction on the material surface is not adequated.

WORK  PROCEDURE

  1. Adjust the soil existing which the material will be installed.
  2. Install the geotextile to separate the layers of materials.
  3. Install Enviro gridTM by attaching one side with anchor along the width of the cell panel. After that, stretch the cell across the length to cover the area as specified by the technical recommendation, then attach the other side using anchor.
  4. Fill the cells with mixed soil until they are slightly overfilled. Then compact the soil in the cells. If the compacted soil goes down lower than the height of the cell, fill in more soil and re-compact it until achieving the desired solidness and the soil levels with the edge of the material.







SPECIFICATIONS

Material                                    : Polyethylene (PE)

Color                                        : Black

Grass coverage                       : 99%

Model GS 100-330 GS 150-350 GS 200-350
Cell Height (mm.) 100 150 200
Distance of Welding (weld to weld) 330 350 400
Thickness (mm.) 1.5 1.5 1.5
Expanded Width (mm.) 2400 2400 2500
Expanded Length (mm.) 4000 4000 6400
Covered Area (sqm.) 9.6 9.6 16
